Honda BF 5

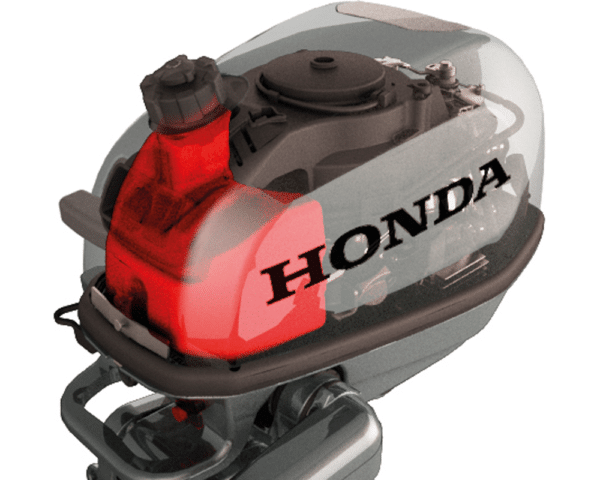

Incredibly practical: the same engine that takes you to the middle of the lake fits right in the boot of your car. Light weight and an ergonomic carry handle make it easy to take anywhere. Four-stroke technology means low fuel consumption, affordable maintenance, and chances are you will get thirsty before your engine does. The newly developed 127 cc powerhead delivers noticeably more torque at low and mid-range RPM, comfortably moving heavier hulls. A compact 1.5-litre internal tank can be supplemented by an external fuel tank for longer voyages. The 12V 6A charging output keeps your onboard electronics powered, digital CDI ignition ensures reliable starts, and water cooling guarantees consistent performance in all conditions.

Power5 HP / 3.7 kW

Engine typeOHC

Cylinders1

Displacement127 cm³

Bore × stroke60 × 45 mm

Valves2

Max. RPM4500–5500

CoolingWater cooling

Fuel system1 carburetor

IgnitionDigital CDI

ExhaustUnderwater

Gear ratio2.08

Gear positionsF-N, 360° rotatable

Charging12V 6A

Propeller size—

Propeller blades3

Oil pressure sensorNo

Overheat sensorYes

Overload limiterNo

Emergency stopYes

Power liftNo

SteeringManual

Start systemRecoil

Shaft lengthS / L

Tilt assistManual

Tilt typeManual 5 positions

Dimensions524 × 347 × 1020/1147 mm

Shaft height434/561 mm

Weight (kg)27–27.5 kg

Available configurations

Every Honda outboard is available in multiple configurations. Shaft length is matched to the boat's transom height, while steering and start type can be chosen to suit your needs.

Type code	Shaft	Steering	Start	Charging	Tilt
BF 5 DH SHU	S (short)	Tiller	Recoil	12V 6A	Manual
BF 5 DH SHNU	S (short)	Tiller	Recoil	—	Manual
BF 5 DH LHU	L (long)	Tiller	Recoil	12V 6A	Manual

5 HP
